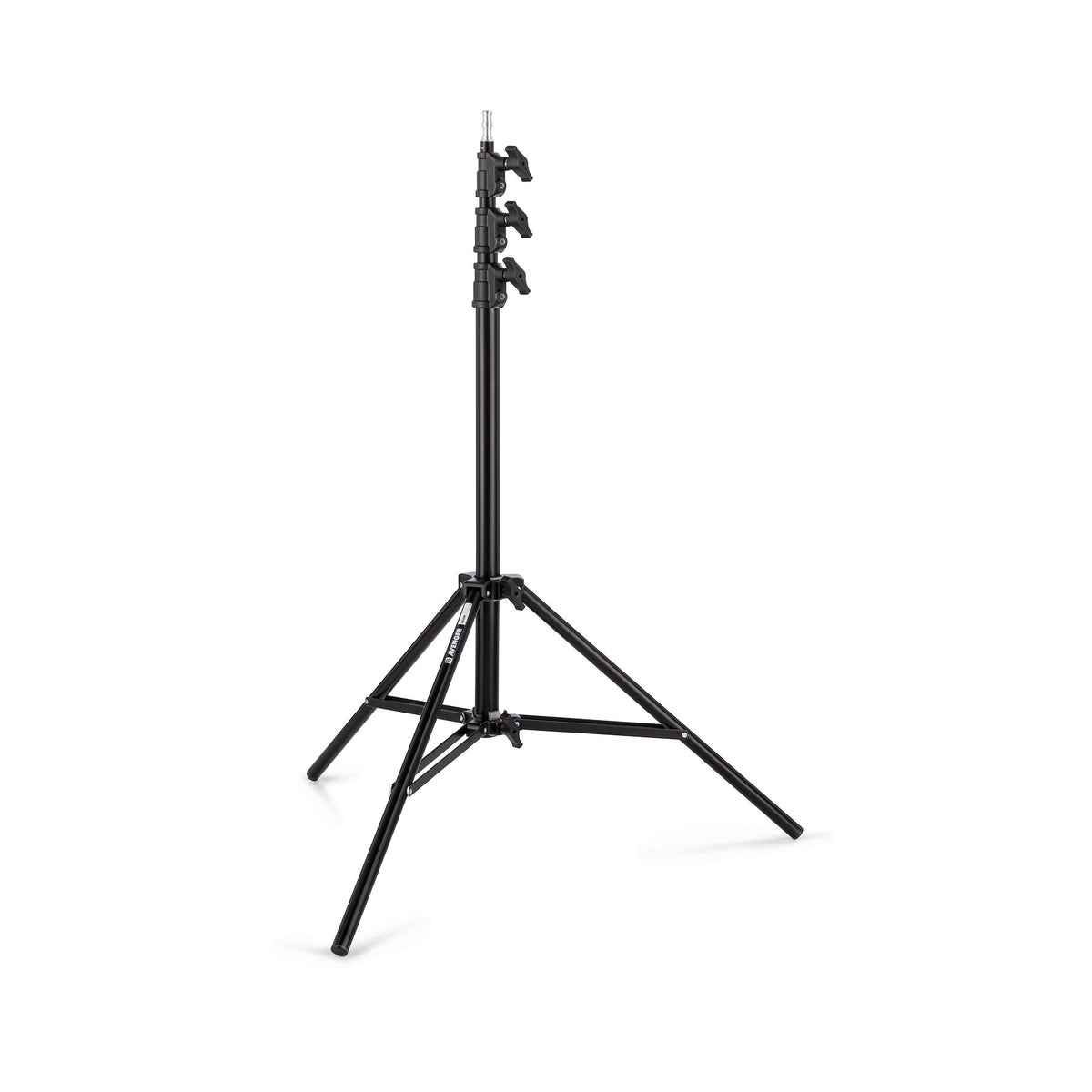

Avenger Baby Kit Stand Midi-Max 310cm/122in Alu Blk Hybrid A630B

Avenger  /  Lighting Stands

Avenger Baby Kit Stand Midi-Max 310cm/122in Alu Blk Hybrid A630B

LH 95712Model A630BEAN 8024221119640

The Avenger A630B black aluminium Midi-Max Kit stand is an extremely robust hybrid stand. The lightweight riveted base coupled with a heavy duty Avenger column make this stand ideal for rental kits or the more heavier duty user that is in the field on a continuous basis. The Midi-Maxi stand has 4 sections, 3 risers and is capable of holding LED's, LED panels, small HMI's and strobes. The baby top pin is a non-threaded 16 mm/ 5/8 in pin and works with all baby receivers. It has a maximum height of 311.7 cm/123 in, can hold up to 9 kg/19.8 lbs. The most popular of the Avenger kit stands, the Midi-Max also features a double column central locking system which is ideal for adding a 4th touch point on the ground. Add in captive locking knobs with brake shoe locking collars for the risers and this is one of the most robust economical solutions to add to any kit! Recommended Accessories: G100-2, D200, E250, 110, 110G, D250, AVCSA1301B, D230, 027, 014-14, 014-38, F830, F831TH

Key Features

  • Aluminium midi-max baby stand in black w/non-threaded baby top.
  • Mobile Column w/double locking T-knobs on the spider castings
  • 4 sections, 3 risers. : 35, 30, 25, 20 mm. Leg : 22 mm
  • Captive locking T-Knob column with riveted round leg base
  • Midi-Max stand designed for kits. Closed length 89.4 cm/35.2"

Specifications

Lamphouse code95712
Manufacturer modelA630B
Maximum height311.7 cm
Minimum height85.5 cm
Payload9 kg
Load capacity at max extension (5 deg)1.8 kg
Closed length89.4 cm
Footprint (max diameter)96 cm
Weight2.2 kg
Sections3
Air cushionedNo
Leg tube size22 mm
Column tube diameter35, 30, 25, 20 mm
Material (base)Aluminium
Material (column)Aluminium
ColourBlack
Male attachment16 mm
Request a quote Quote only — no online pricing
