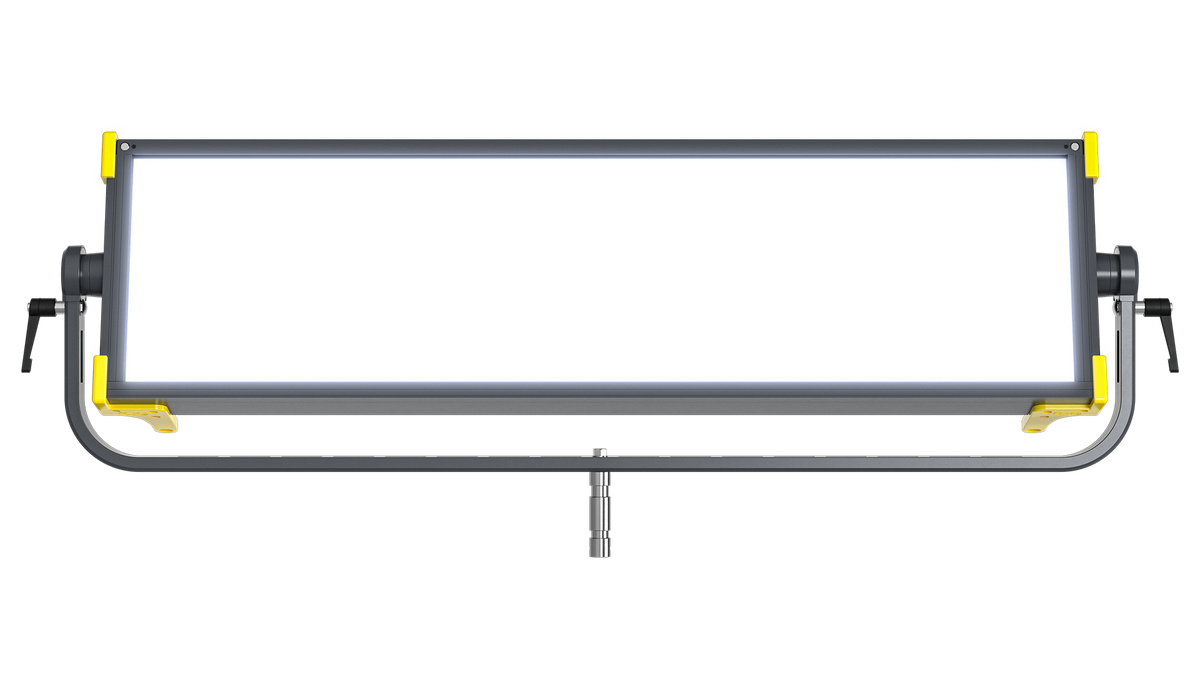

Kino Flo Celeb IKON 12 LED Softlight
Celeb IKON 12 puts the classic 4x1 Kino Flo form factor behind a 1200 watt RGB-cW-wW LED engine that drives full power to every white point and colour setting. IP65 rating makes it dependable indoors or outdoors.
Two newly engineered full-spectrum white sources deliver the broadest and most accurate white light Kino Flo publishes, and the True Match operating system gives precise control of colour temperature and dimming for close-up work, plus fully saturated colour through hue angle adjustment and direct RGB input.
True Match also simplifies remote configuration for lighting programmers over RDM and DMX. LumenRadio wireless DMX is standard. Rigging uses an adjustable removable yoke, a Junior pin and integrated feet, and the integrated power supply carries PowerCON TRUE1 in and out for daisychaining with no external ballast.
Key features
- RGB-cW-wW LED engine with improved white and colour space spectrums
- IP65 dust tight and protected in wet conditions
- 16 independently controlled zones
- Built-in wireless CRMX control (LumenRadio)
- Wireless DMX, RDM, sACN, ArtNet, 5-pin XLR DMX in and out, EtherCON in and out
- DMX and Ethernet data pass-through
- Integrated power supply with PowerCON TRUE1 in and out for daisychaining
- Removable diffusion
- USB-C preset storage and firmware update
- Touch screen menu and control dial
- Adjustable removable yoke, Junior pin and feet
Specifications
| Manufacturer model | Celeb IKON 12 |
|---|---|
| Beam angle | 109 degrees |
| IP rating | IP65 |
| Dimensions | 1563.9 x 568.2 x 198.7 mm (61.57 x 22.37 x 7.82 in) |
| Weight | 33 kg / 72.8 lb with yoke, Junior pin and diffusion |
| Cct range | 2500 K to 9900 K |
| Control | Wireless DMX (CRMX), RDM, sACN, ArtNet, 5-pin XLR DMX in and out, EtherCON in and out |
| Led engine | RGB-cW-wW |
| Photometrics | 3200 K: 40788 lux at 1 m, 1133 at 6 m, 283 at 12 m. 5600 K: 45709 lux at 1 m, 1270 at 6 m, 317 at 12 m |
| Power | 1200 W to all white and colour points |
| Spec source | Ikon-12-Spec-Sheet-03-26-2.pdf (Ver 03-26) and Celeb-Ikon-12-Dims.pdf |
| Tlci | 99 |
| Tm30 rf | 96.3 |
| Tm30 rg | 100.1 |
| Zones | 16 independently controlled |
