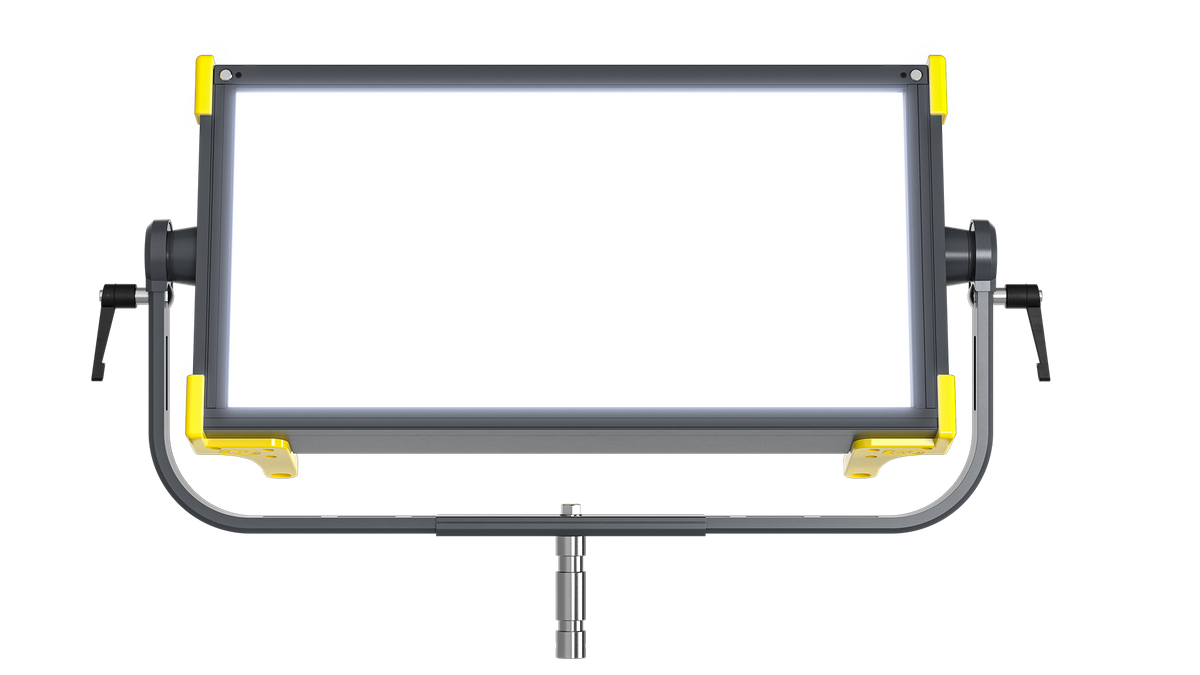

Kino Flo Celeb IKON 6 LED Softlight
Celeb IKON 6 is a 600 watt IP65-rated softlight built for indoor and outdoor work, driven by Kino Flo's RGB-cW-wW LED engine. It holds full power at every white point and colour point rather than derating away from daylight, and its two full-spectrum white sources give the broadest white light Kino Flo currently publishes.
Eight independently controlled zones, hue angle and saturation adjustment and direct RGB input put precise colour within reach. Control is comprehensive: built-in wireless CRMX, RDM, sACN, ArtNet, 5-pin XLR DMX in and out and EtherCON in and out, with DMX and Ethernet data pass-through for daisychaining. The power supply is integrated with PowerCON TRUE1 in and out, so there is no external ballast to rig.
Presets store and load over USB-C, firmware updates over Ethernet or USB-C, and DC battery input runs at 48 V through a 3-pin XLR. A Junior pin mount and integrated feet cover staging, mounting and hanging.
Key features
- RGB-cW-wW LED engine with improved white and colour space spectrums
- IP65 dust tight and water resistant, rated for indoor and outdoor use
- 8 independently controlled zones
- Built-in wireless CRMX control
- Wireless DMX, RDM, sACN, ArtNet, 5-pin XLR DMX in and out, EtherCON in and out
- DMX and Ethernet data pass-through
- Integrated power supply with PowerCON TRUE1 in and out for daisychaining
- Removable diffusion
- USB-C preset storage and firmware update
- 48 V DC battery input via 3-pin XLR
- Touch screen menu and control dial
- Junior pin mount and feet for staging, mounting and hanging
Specifications
| Manufacturer model | Celeb IKON 6 |
|---|---|
| Beam angle | 108 degrees |
| IP rating | IP65 |
| Dimensions | 896.7 x 561.7 x 195.7 mm (35.30 x 22.11 x 7.70 in) |
| Weight | 18.1 kg / 40 lb with yoke, Junior pin and diffusion |
| Battery input | 48 V DC via 3-pin XLR |
| Cct range | 2500 K to 9900 K |
| Control | Wireless DMX (CRMX), RDM, sACN, ArtNet, 5-pin XLR DMX in and out, EtherCON in and out |
| Led engine | RGB-cW-wW |
| Photometrics | 3200 K: 14591 lux at 1 m, 405 at 6 m, 101 at 12 m. 5600 K: 16487 lux at 1 m, 458 at 6 m, 114 at 12 m |
| Power | 600 W to all white and colour points |
| Spec source | Celeb-Ikon-Data-Sheet-V5.pdf (Ver 12-25) |
| Tlci | 99 |
| Tm30 rf | 95.7 |
| Tm30 rg | 99.3 |
| Zones | 8 independently controlled |
