Group/ LED Solutions/Kino Flo Diva Lux 4 LED Softlight
Kino Flo / LED Softlight

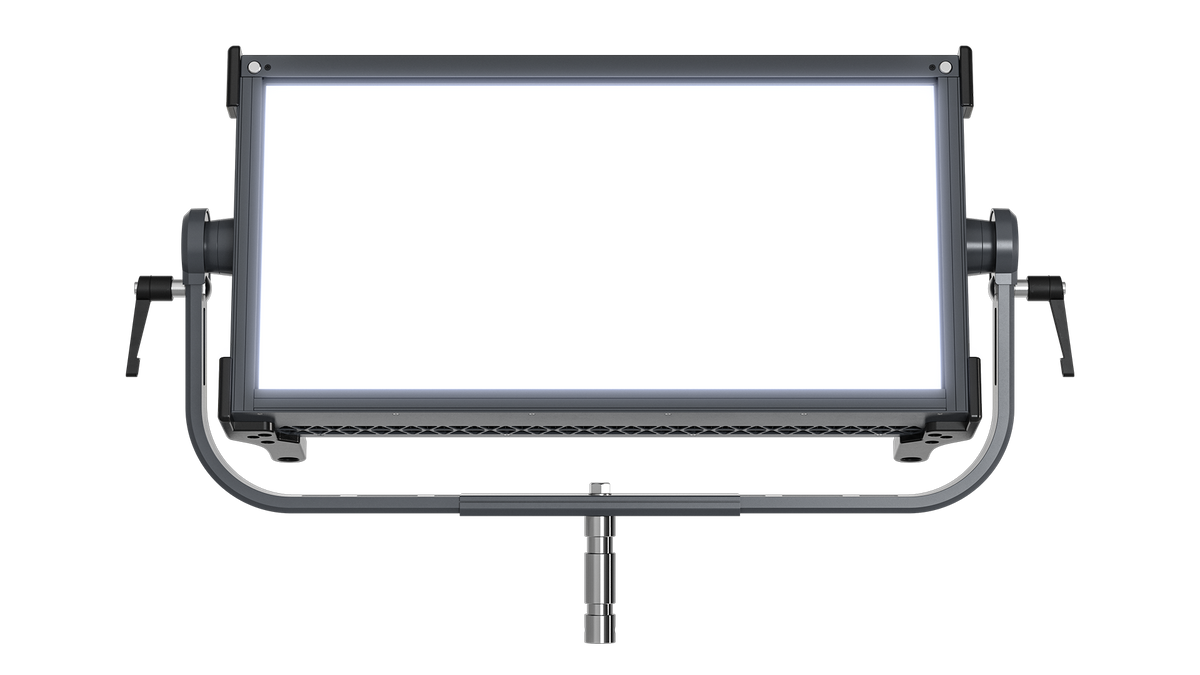

Kino Flo Diva Lux 4 LED Softlight
Diva Lux 4 is a bright, energy-efficient softlight built for indoor work, delivering best-in-class white light and colour space spectrums from a new RGBwWcW LED engine. It drives full power at all white points and nearly all colour points, and carries two improved full-spectrum white sources for the highest quality soft white light Kino Flo offers in this class.
True Match firmware handles on-board control and remote configuration over RDM and DMX. LumenRadio wireless DMX is standard, with City Theatrical Multiverse available at time of purchase or as a later service-centre swap.
Four independently controlled zones, a touch screen menu and control dial, and Junior pin and feet mounting make it a straightforward fit for broadcast studios, houses of worship and film and television lighting.
Key features
- RGBwWcW LED engine with improved white space and colour space spectrums
- 4 independently controlled zones
- Built-in wireless CRMX, factory swappable to City Theatrical Multiverse
- Wireless DMX, RDM, sACN, ArtNet, 5-pin XLR DMX in and out, EtherCON in and out
- DMX and Ethernet data pass-through
- Removable diffusion
- Touch screen menu and control dial
- Firmware updates via USB-C
- Junior pin mount and feet for staging, mounting and hanging
Specifications
| Manufacturer model | Diva Lux 4 |
|---|---|
| Weight | 14.9 kg / 32.9 lb with yoke, Junior pin and diffusion |
| Battery input | 48 V DC |
| Beam angle | 106 degrees |
| Cct range | 2500 K to 9900 K |
| Control | Wireless DMX (CRMX, Multiverse option), RDM, sACN, ArtNet, 5-pin XLR DMX in and out, EtherCON in and out |
| Dimensions | 857.7 x 530.6 x 181.3 mm (33.77 x 20.89 x 7.14 in) |
| Led engine | RGBwWcW |
| Photometrics | Voltage range 100 to 240 V AC and 48 V DC |
| Power | 400 W to all white points and most colour points, 500 W power draw |
| Spec source | 1570-007-Diva-LUX-4-2-Page-Cutsheet-5.16.25.pdf |
| Tlci | 99 at 3200 K and 5600 K |
| Tm30 rf | 96 at 3200 K and 5600 K |
| Zones | 4 independently controlled |
