Fluence PYTHN Under Canopy LED BP6
Model PT-BP6-LV-B
Current generation. Contact our team for lead time and project scheduling.

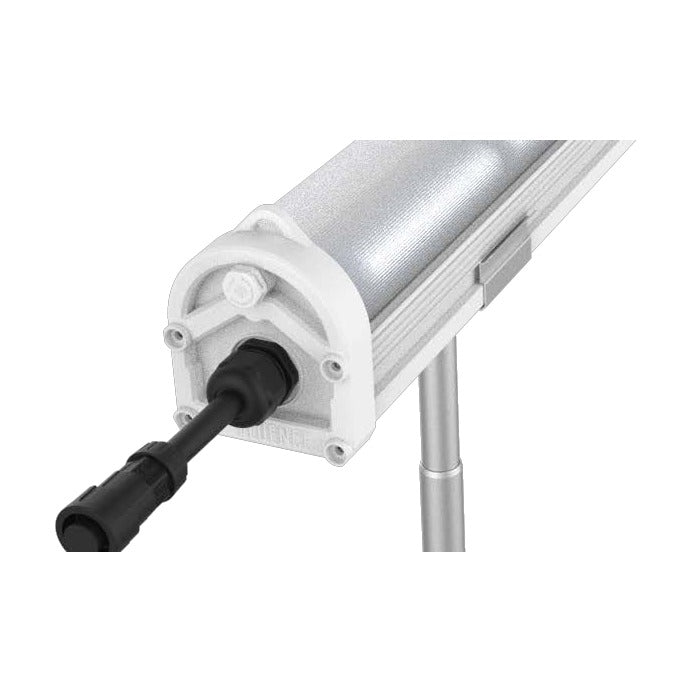

PYTHN is an under-canopy LED bar that delivers light to the shaded area beneath the canopy. The BP6 Broad R6 spectrum version draws 120 W for the same 360 umol/s output as the BP8.
Key Features
- 360 umol/s PPF
- 3.0 umol/J efficacy
- Integrated power supply
- 145 deg optic
- Photobiological Risk Group 1
- IP66 wet location
Performance by Spectrum
Each spectrum is a separate order code. Figures below are per SKU, transcribed from the manufacturer spec sheet.
| Input voltage | AC power @277 V | Output PF 400-800 nm | Efficacy | Order code | 12NC |
|---|---|---|---|---|---|
| 120-277 V AC | 120 W | 360 umol/s | 3,0 umol/J | PT-BP6-LV-B | 912401707154 |
| 347-400 V AC | 120 W | 360 umol/s | 3,0 umol/J | PT-BP6-EHV-B | 912401707155 |
What's Included
- PYTHN BP6 luminaire
- Accessories to be determined per project: AC cable PT-CAC-M25-5-1.5-S
Distributed in South Africa by The Lamphouse Group. Contact our team for project design, PPFD mapping and commercial pricing.
Specifications
| Manufacturer model | PT-BP6-LV-B |
|---|---|
| Light output (PPF) | 360 umol/s |
| Efficacy | 3.0 umol/J |
| AC input power | 120 W @ 277 V AC |
| Input voltage | 120 - 277 V AC or 347 - 400 V AC, 50/60 Hz |
| Spectrum | PhysioSpec Broad R6 |
| Beam angle | 145 deg |
| Dimming | Source signal driver, 0-10 V, dim to off, 10-100% (M12 port) |
| Power factor | > 0.9 |
| THD | < 15% |
| Lifetime | Q90 > 36 000 hrs |
| Maximum ambient | 35 degC |
| IP rating | IP66, Wet Location |
| Dimensions | 1280 mm (length A) / 1140 mm (length B) x 82 x 105 mm |
| Weight | 3.4 kg |
| Warranty | 5 Year Limited Warranty |
| Certifications | ETL / CE / UL 8800 / IEC 60598-1 / IEC 62471 |
