Group/ Horticulture Systems/Fluence SPYDR 3h47 LED Grow Light BW4
Fluence by Signify / Grow Light

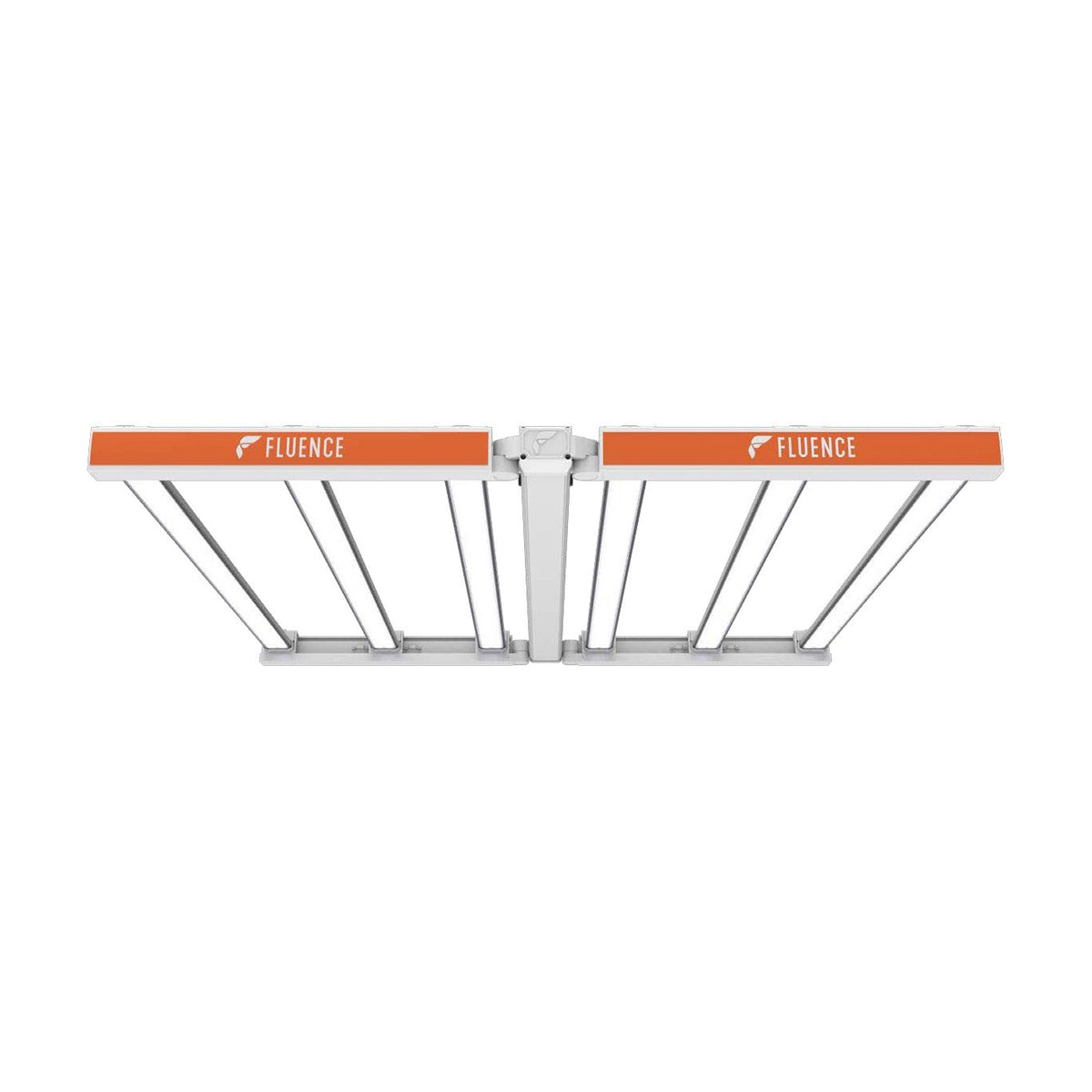

Fluence SPYDR 3h47 LED Grow Light BW4
Model SR-3h47-BW4-JV-S
Current generation. Contact our team for lead time and project scheduling.
The SPYDR 3h47 is the highest-output fixture in the SPYDR 3 range, built for high PPFD flowering in the 1200 to 1300 umol/m2/s range. Six replaceable IP66 bars on 20,3 cm spacing carry 2090 umol/s across a 47 inch footprint.
Key Features
- 2090 umol/s PPF
- 2.6 umol/J efficacy
- 6 replaceable bars
- 20,3 cm bar spacing
- Integrated driver
- 230-400 V AC
What's Included
- SPYDR 3h47 luminaire with integrated driver
Distributed in South Africa by The Lamphouse Group. Contact our team for project design, PPFD mapping and commercial pricing.
Specifications
| Manufacturer model | SR-3h47-BW4-JV-S |
|---|---|
| Light output (PPF) | 2090 umol/s |
| Efficacy | 2.6 umol/J |
| AC input power | 800 W @ 277 V AC |
| Input voltage | 230 - 400 V AC |
| Spectrum | PhysioSpec Broad R4 |
| Beam angle | Lambertian |
| Dimming | Source signal driver, 0-10 V, dim to off, 10-100% (M12 port) |
| THD | < 10% at 100% output |
| Lifetime | L90 > 50 000 hrs (driver and LED) |
| Maximum ambient | 40 degC, 90% RH non-condensing |
| IP rating | IP66 (IEC 60529) |
| Dimensions | 1194 x 1092 x 83 mm |
| Weight | 11.9 kg |
| Warranty | 5 Year Limited Warranty |
| Certifications | CE / CB per IEC 60598-2-1:2020 |
