Group/ Horticulture Systems/Fluence SPYDR 3x47 LED Grow Light BW5
Fluence by Signify / Grow Light

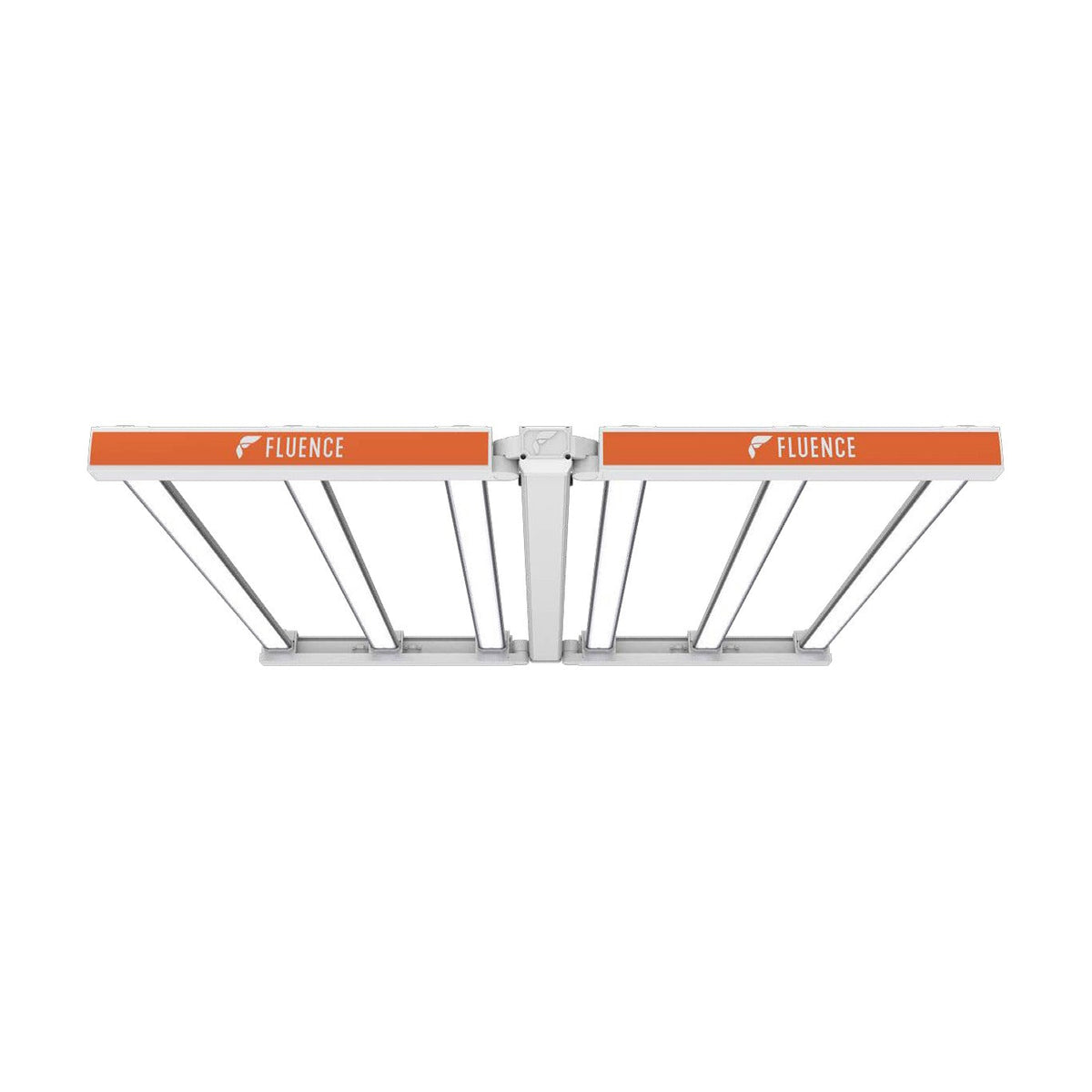

Fluence SPYDR 3x47 LED Grow Light BW5
Model SR-3x47-BW5-JV-S
Current generation. Contact our team for lead time and project scheduling.
The SPYDR 3x47 is a multi-tier LED top light for vegetative growth and low-PPFD flowering without CO2 supplementation, in the 700 to 750 umol/m2/s range. Four replaceable IP66 bars on 30,5 cm spacing sit close to the canopy for even coverage in tight tier spacing.
Key Features
- 1190 umol/s PPF
- 3.0 umol/J efficacy
- 4 replaceable bars
- 30,5 cm bar spacing
- Integrated driver
- 230-400 V AC
What's Included
- SPYDR 3x47 luminaire with integrated driver
Distributed in South Africa by The Lamphouse Group. Contact our team for project design, PPFD mapping and commercial pricing.
Specifications
| Manufacturer model | SR-3x47-BW5-JV-S |
|---|---|
| Light output (PPF) | 1190 umol/s |
| Efficacy | 3.0 umol/J |
| AC input power | 390 W @ 277 V AC |
| Input voltage | 230 - 400 V AC |
| Spectrum | PhysioSpec Broad R5 |
| Beam angle | Lambertian |
| Dimming | Source signal driver, 0-10 V, dim to off, 10-100% (M12 port) |
| THD | < 10% at 100% output |
| Lifetime | L90 > 50 000 hrs (driver and LED) |
| Maximum ambient | 40 degC, 90% RH non-condensing |
| IP rating | IP66 (IEC 60529) |
| Dimensions | 1194 x 1092 x 83 mm |
| Weight | 7.9 kg |
| Warranty | 5 Year Limited Warranty |
| Certifications | CE / CB per IEC 60598-2-1:2020 |
Downloads
Datasheet (PDF)
Request a quote
Quote only — no online pricing
