Group/ Horticulture Systems/Fluence VYPR 3p Greenhouse LED Top Light
Fluence by Signify / Grow Light

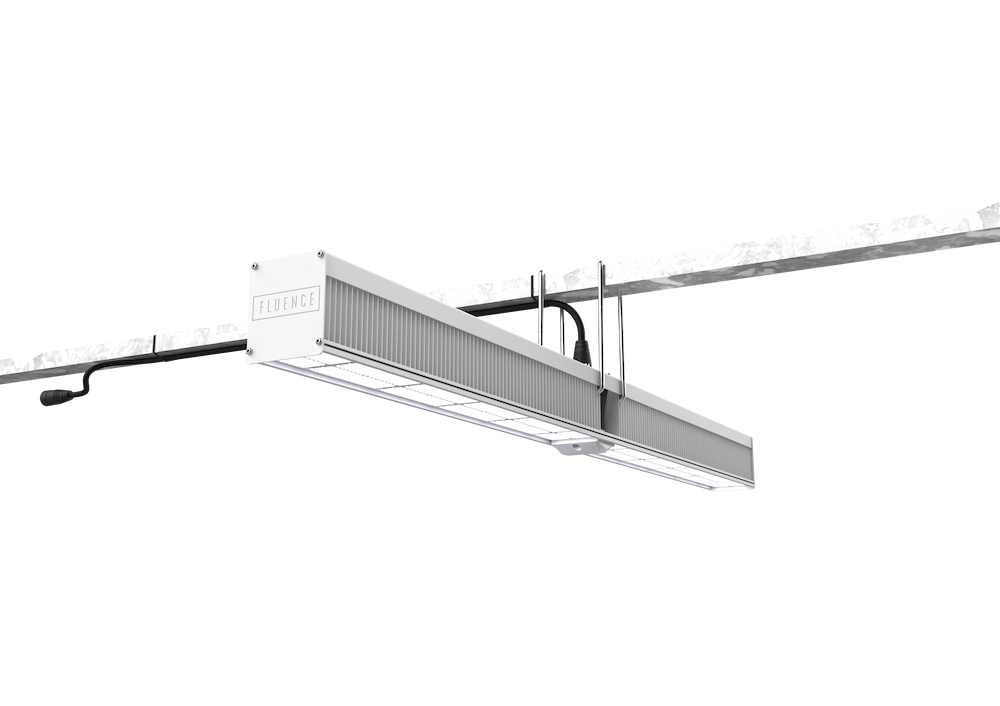

Fluence VYPR 3p Greenhouse LED Top Light
In stock in South Africa now. Available for immediate despatch while current stock lasts.
The VYPR 3p is a single-bar greenhouse and indoor top light offered in seven spectra, from Broad R3 through Dual R9B High Efficacy at up to 3.8 umol/J.
Key Features
- Dual R9B High Efficacy: 2330 umol/s at 3.8 umol/J
- Broad R8: 1965 umol/s at 3.2 umol/J
- Broad R6: 1800 umol/s at 3.0 umol/J
- Broad R4: 1663 umol/s at 2.7 umol/J
- Seven spectrum options
- IP66, Class I electrical insulation
Performance by Spectrum
Each spectrum is a separate order code. Figures below are per SKU, transcribed from the manufacturer spec sheet.
| Spectrum | PPF 400-700 nm | AC power @230 V | Efficacy @230 V | AC power @400 V | Efficacy @400 V | Order code |
|---|---|---|---|---|---|---|
| BROAD R3 | 1680 umol/s | 625 W | 2,7 umol/J | 618 W | 2,7 umol/J | VR-3P-BW3 |
| BROAD R4 | 1663 umol/s | 625 W | 2,7 umol/J | 618 W | 2,7 umol/J | VR-3P-BW4 |
| BROAD R6 | 1800 umol/s | 614 W | 2,9 umol/J | 607 W | 3,0 umol/J | VR-3P-BP6 |
| BROAD R8 | 1965 umol/s | 621 W | 3,2 umol/J | 614 W | 3,2 umol/J | VR-3P-BP8 |
| DUAL R9B High Efficacy | 2330 umol/s | 624 W | 3,7 umol/J | 617 W | 3,8 umol/J | VR-3P-HR9 |
| DUAL R9B | 2226 umol/s | 625 W | 3,6 umol/J | 618 W | 3,6 umol/J | VR-3P-DR9 |
| DUAL R5B | 1690 umol/s | 622 W | 2,7 umol/J | 615 W | 2,7 umol/J | VR-3P-DR5 |
BROAD R6 + Far Red (VR-3P-B6F) is measured 400-800 nm at 1878 umol/s including 216 umol/s far red, 624 W at 230 V and 617 W at 400 V, both 3,0 umol/J. It is not directly comparable to the 400-700 nm figures above.
What's Included
- VYPR 3p light fixture
- Accessories to be determined per project: PSU2 LVG 600 W or PSU2 HVE 600 W, mounting kit, cabling
Distributed in South Africa by The Lamphouse Group. Contact our team for project design, PPFD mapping and commercial pricing.
Specifications
| Manufacturer model | VR-3P-BW3 |
|---|---|
| Light output (PPF) | 1663 - 2330 umol/s (by spectrum) |
| Efficacy | 2.7 - 3.8 umol/J (by spectrum) |
| AC input power | 607 - 625 W @ 230 V and @ 400 V |
| Input voltage | 230 V AC, 400 V AC, 50/60 Hz |
| Spectrum | PhysioSpec Broad R3, R4, R6, R8; Dual R9B, Dual R5B |
| Beam angle | 120 deg light distribution |
| Dimming | Source signal driver, 0/1-10 V, off, 10-100% |
| Power factor | > 0,98 (230 V AC); > 0,96 (400 V AC) |
| THD | < 10% |
| Lifetime | L90 > 50 000 hrs |
| Maximum ambient | 40 degC [104 degF] |
| IP rating | IP66 |
| Dimensions | 1071 x 74 x 82 mm |
| Weight | 3.5 kg |
| Warranty | 5 Year Limited Warranty |
| Certifications | CE / ETL / cETL / Wet Location |
