Group/ Horticulture Systems/Fluence VYPR 3x2 LED Top Light Cradle Mount
Fluence by Signify / Grow Light

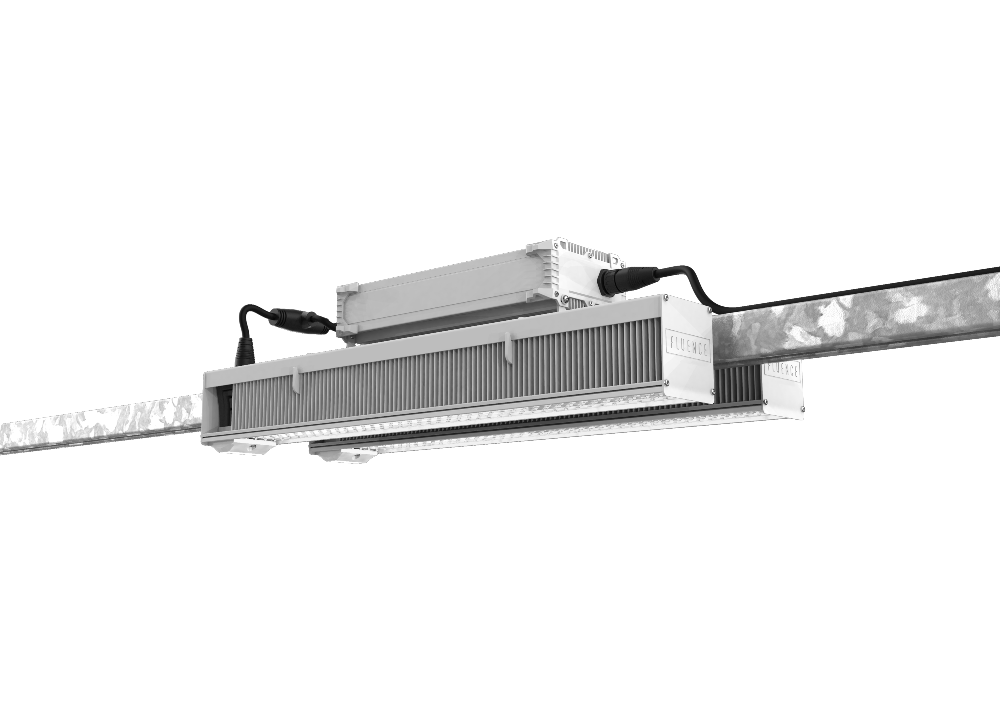

Fluence VYPR 3x2 LED Top Light Cradle Mount
In stock in South Africa now. Available for immediate despatch while current stock lasts.
The VYPR 3x2 pairs two VYPR 3x light bars on a cradle or remote mount, giving the output of a full-length fixture in a shorter footprint for high PPFD installations on a single truss.
Key Features
- Two VYPR 3x light bars per system
- Dual R9B High Efficacy: 2317 umol/s at 3.8 umol/J
- Broad R8: 1929 umol/s at 3.2 umol/J
- Seven spectrum options
- Cradle or remote mount
- LVG 600 W or HVG 600 W power supply
Performance by Spectrum
Each spectrum is a separate order code. Figures below are per SKU, transcribed from the manufacturer spec sheet.
| Spectrum | System PPF 400-700 nm | AC power @400 V | Efficacy @400 V | AC power @230 V | Efficacy @230 V | Order code | Light bar 12NC |
|---|---|---|---|---|---|---|---|
| BROAD R3 | 1692 umol/s | 618 W | 2,7 umol/J | 625 W | 2,7 umol/J | VR-3X2-BW3 | 9124 016 88714 |
| BROAD R4 | 1665 umol/s | 618 W | 2,7 umol/J | 625 W | 2,7 umol/J | VR-3X2-BW4 | 9124 016 88715 |
| BROAD R6 | 1801 umol/s | 606 W | 3,0 umol/J | 613 W | 2,9 umol/J | VR-3X2-BP6 | 9124 016 88711 |
| BROAD R8 | 1929 umol/s | 600 W | 3,2 umol/J | 606 W | 3,2 umol/J | VR-3X2-BP8 | 9124 016 88710 |
| DUAL R9B High Efficacy | 2317 umol/s | 611 W | 3,8 umol/J | 617 W | 3,8 umol/J | VR-3X2-HR9 | 9124 016 88713 |
| DUAL R9B | 2195 umol/s | 614 W | 3,6 umol/J | 621 W | 3,5 umol/J | VR-3X2-DR9 | 9124 016 88709 |
| DUAL R5B | 1704 umol/s | 619 W | 2,8 umol/J | 626 W | 2,7 umol/J | VR-3X2-DR5 | 9124 016 88712 |
Figures are for the complete two bar VYPR 3x2 system. Fluence does not publish output for a single VYPR 3x light bar on this sheet. The 12NC column is the individual light bar, two per system.
What's Included
- VYPR 3x2 cradle or remote mount assembly
- Accessories to be determined per project: LVG 600 W or HVG 600 W power supply, cabling
Distributed in South Africa by The Lamphouse Group. Contact our team for project design, PPFD mapping and commercial pricing.
Specifications
| Manufacturer model | VR-3X2-BW3 |
|---|---|
| Light output (PPF) | 1665 - 2317 umol/s, two bar system (by spectrum) |
| Efficacy | 2,7 - 3,8 umol/J (by spectrum) |
| AC input power | 600 - 626 W @ 230 V and @ 400 V |
| Input voltage | 230 V AC, 400 V AC, 50 Hz (+/- 10%) |
| Spectrum | PhysioSpec Broad R3, R4, R6, R8; Dual R9B, Dual R5B |
| Beam angle | 120 deg light distribution |
| Dimming | Source signal driver, 0/1-10 V, off, 10-100% |
| Power factor | > 0,98 (230 V AC); > 0,96 (400 V AC) |
| THD | < 10% |
| Lifetime | L90 > 50 000 hrs |
| Maximum ambient | 40 degC [104 degF] |
| IP rating | IP66 |
| Dimensions | 612 x 235 x 178 mm (cradle or remote mount). Light bar 612 x 74 x 82 mm |
| Weight | 8.0 kg |
| Warranty | 5 Year Limited Warranty |
| Certifications | CE / ETL / cETL / Wet Location |
