Group/ Horticulture Systems/Fluence VYPR 4p LED Top Light 600 W
Fluence by Signify / Grow Light

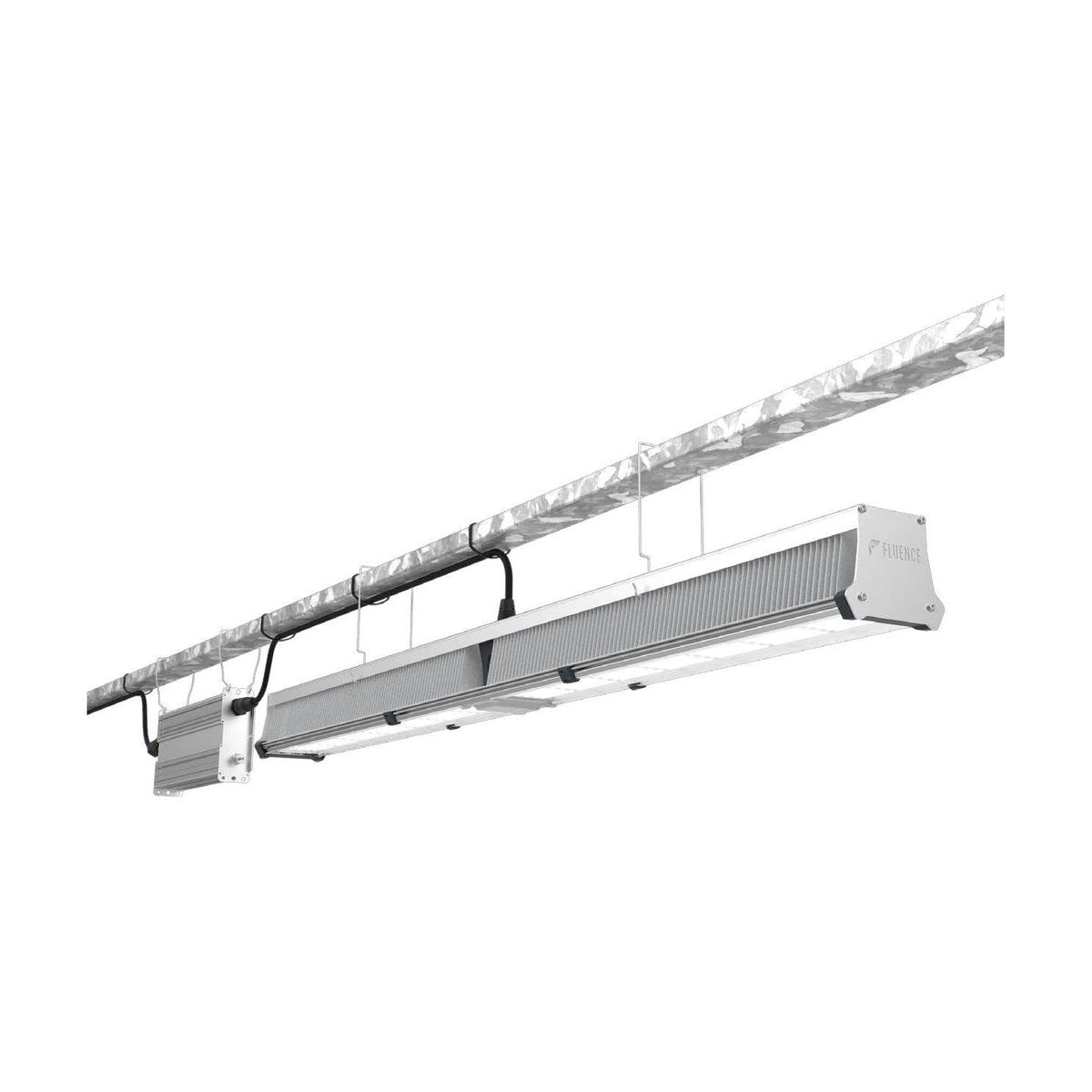

Fluence VYPR 4p LED Top Light 600 W
Model VR-4p-BW4-CG
Current generation. Contact our team for lead time and project scheduling.
The VYPR 4p is the 600 W light bar in the VYPR 4 top-lighting range and the only model available on a 120 to 277 V supply as well as 200 to 480 V. It suits greenhouse supplemental lighting and indoor sole-source rooms.
Key Features
- Broad R4 CG: 1690 umol/s at 2.7 umol/J
- Broad R8 CG: 2040 umol/s at 3.3 umol/J
- Broad R8 WB: 1980 umol/s at 3.2 umol/J
- Up to 3.6 umol/J at 50% dim
- 120-277 V or 200-480 V AC
- IP66 wet location
Performance by Spectrum
Each spectrum is a separate order code. Figures below are per SKU, transcribed from the manufacturer spec sheet.
| Configuration | AC power @400 V | PPF 400-700 nm | PF 400-800 nm | Efficacy | Efficacy @50% dim | Order code | 12NC single pack |
|---|---|---|---|---|---|---|---|
| Broad R4, clear glass | 634 W | 1690 umol/s | 1730 umol/s | 2.7 umol/J | 2.9 umol/J | VR-4p-BW4-CG | 9124 017 07139 |
| Broad R8, clear glass | 624 W | 2040 umol/s | 2060 umol/s | 3.3 umol/J | 3.6 umol/J | VR-4p-BP8-CG | 9124 017 07140 |
| Broad R8, wide beam | 624 W | 1980 umol/s | 2010 umol/s | 3.2 umol/J | 3.5 umol/J | VR-4p-BP8-WB | 9124 017 07141 |
What's Included
- VYPR 4p light bar
- Accessories to be determined per project: power supply (600 W LVG or JVG), DC cable, mounting hardware
Distributed in South Africa by The Lamphouse Group. Contact our team for project design, PPFD mapping and commercial pricing.
Specifications
| Manufacturer model | VR-4p-BW4-CG |
|---|---|
| Light output (PPF) | 1690 - 2040 umol/s (by spectrum) |
| Efficacy | 2.7 - 3.3 umol/J |
| AC input power | 624 - 634 W @ 400 V AC |
| Input voltage | 200 - 480 V AC, 50/60 Hz |
| Spectrum | PhysioSpec Broad R4 (BW4), Broad R8 (BP8) |
| Beam angle | Lambertian (clear glass) or wide beam optic (BP8) |
| Dimming | Source signal driver, 0-10 V, dim to off, 10-100% |
| Power factor | > 0,97 at 100% output |
| THD | < 20% |
| Lifetime | Q90 > 50 000 hrs |
| Maximum ambient | 40 degC [104 degF] |
| IP rating | IP66, RH < 90% non-condensing |
| Dimensions | 900 x 107 x 91 mm |
| Weight | 3.8 kg |
| Warranty | 5 Year Limited Warranty |
| Certifications | cETLus / CE / UKCA / Wet Location |
Downloads
Datasheet (PDF)
Request a quote
Quote only — no online pricing
