Group/ Horticulture Systems/Fluence VYPR 4x LED Top Light 400 W
Fluence by Signify / Grow Light

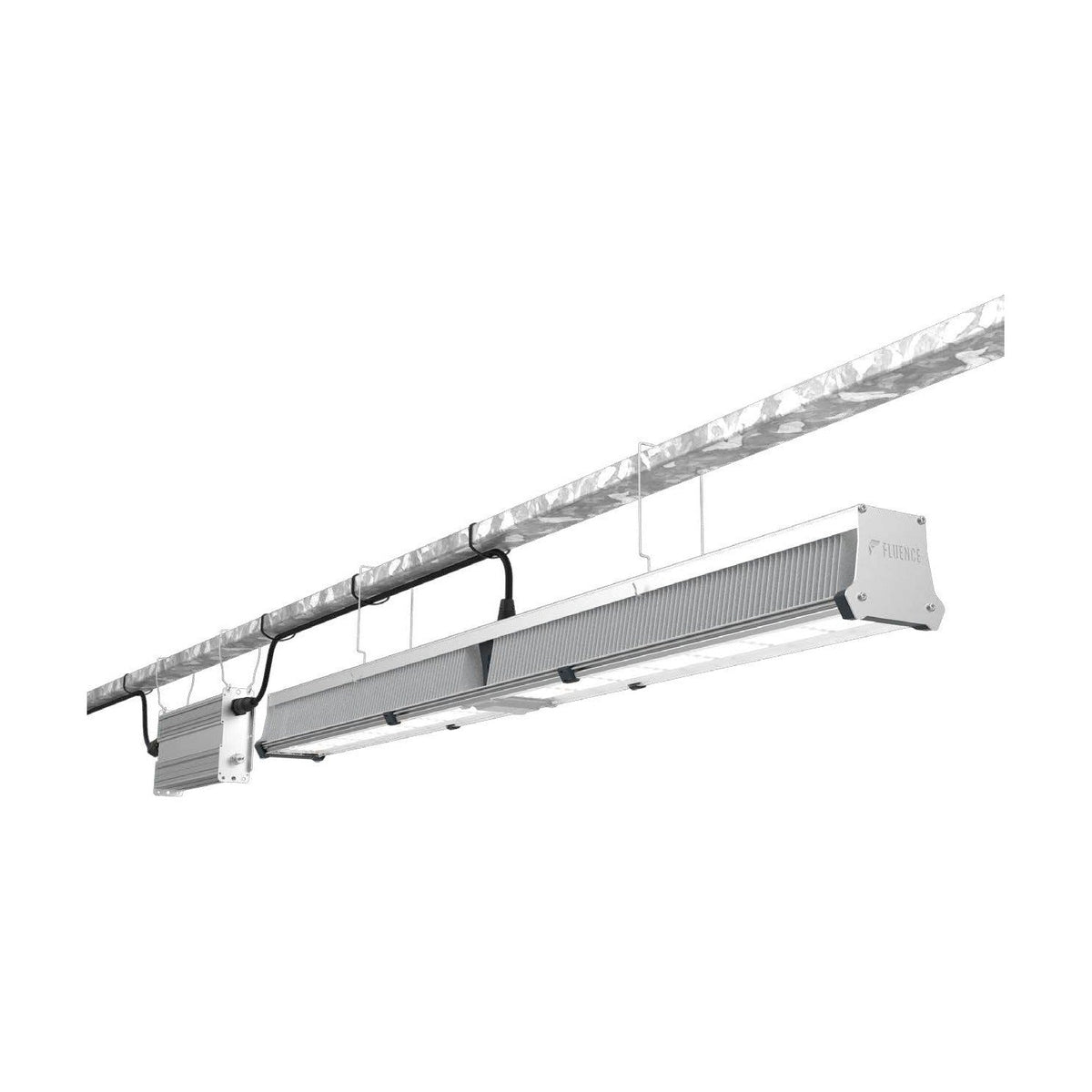

Fluence VYPR 4x LED Top Light 400 W
Model VR-4x-BW4-CG
Current generation. Contact our team for lead time and project scheduling.
The VYPR 4x is the compact 400 W light bar in the VYPR 4 top-lighting range, for greenhouse supplemental and indoor sole-source growing. The wide beam optic option improves uniformity at lower mounting heights.
Key Features
- Broad R4 CG: 1120 umol/s at 2.7 umol/J
- Broad R8 CG: 1370 umol/s at 3.3 umol/J
- Broad R8 WB: 1320 umol/s at 3.2 umol/J
- Up to 3.6 umol/J at 50% dim
- 200-480 V AC
- IP66 wet location
Performance by Spectrum
Each spectrum is a separate order code. Figures below are per SKU, transcribed from the manufacturer spec sheet.
| Configuration | AC power @400 V | PPF 400-700 nm | PF 400-800 nm | Efficacy | Efficacy @50% dim | Order code | 12NC single pack |
|---|---|---|---|---|---|---|---|
| Broad R4, clear glass | 422 W | 1120 umol/s | 1150 umol/s | 2.7 umol/J | 2.9 umol/J | VR-4x-BW4-CG | 9124 017 07136 |
| Broad R8, clear glass | 415 W | 1370 umol/s | 1380 umol/s | 3.3 umol/J | 3.6 umol/J | VR-4x-BP8-CG | 9124 017 07137 |
| Broad R8, wide beam | 415 W | 1320 umol/s | 1330 umol/s | 3.2 umol/J | 3.5 umol/J | VR-4x-BP8-WB | 9124 017 07138 |
What's Included
- VYPR 4x light bar
- Accessories to be determined per project: power supply, DC cable, mounting hardware
Distributed in South Africa by The Lamphouse Group. Contact our team for project design, PPFD mapping and commercial pricing.
Specifications
| Manufacturer model | VR-4x-BW4-CG |
|---|---|
| Light output (PPF) | 1120 - 1370 umol/s (by spectrum) |
| Efficacy | 2.7 - 3.3 umol/J |
| AC input power | 415 - 422 W @ 400 V AC |
| Input voltage | 200 - 480 V AC, 50/60 Hz |
| Spectrum | PhysioSpec Broad R4 (BW4), Broad R8 (BP8) |
| Beam angle | Lambertian (clear glass) or wide beam optic (BP8) |
| Dimming | Source signal driver, 0-10 V, dim to off, 10-100% |
| Power factor | > 0,97 at 100% output |
| THD | < 20% |
| Lifetime | Q90 > 50 000 hrs |
| Maximum ambient | 40 degC [104 degF] |
| IP rating | IP66, RH < 90% non-condensing |
| Dimensions | 605 x 107 x 91 mm |
| Weight | 2.6 kg |
| Warranty | 5 Year Limited Warranty |
| Certifications | cETLus / CE / UKCA / Wet Location |
Downloads
Datasheet (PDF)
Request a quote
Quote only — no online pricing
