LiteGear LiteMat Spectrum 2

LiteGear  /  LED Softlight Panel

LiteGear LiteMat Spectrum 2 Head

LH LM1.00118Model 252-1

LiteMat Spectrum is a rigid, ultra-thin soft source built to be rigged where a fixture has to disappear into the set. The Gen 2 light engine adds smoother low-end dimming, mappable large format pixels, precision-calibrated electronics and updateable pixel driver firmware. Heads run on 48V DC from a LiteGear dimmer over a single PDX cable.

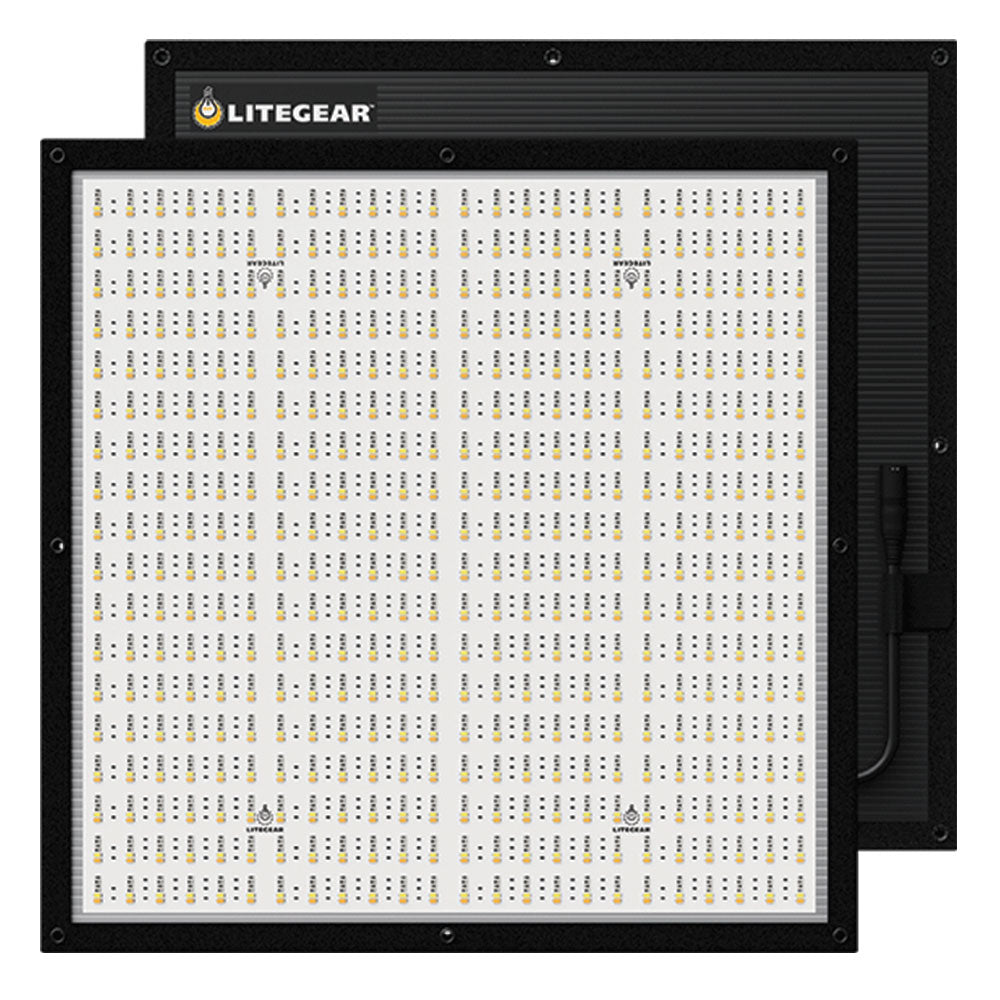

The LiteMat Spectrum 2 head. 100W nominal over 21.1 in. (535.4 mm) by 21.1 in. (535.4 mm), with 2 large format pixels and a 56° HPA beam. Weight 7.19 lbs (3.3 kg).

Specifications

Lamphouse codeLM1.00118
Manufacturer model252-1
Wattage100W Nominal
Colour temperature2,000K to 11,000K
CRI>= 95
TLCI>= 95
LED quantity2,592
Pixels2 large format pixels
Colour control6-color, wide gamut hue and saturation control
Beam angle56° HPA
Dimming0 to 100% Continuous (When paired with a compatible LiteGear Dimmer)
Input voltage48V DC
Input current2.08A
ConnectorPDX
LED lifetime50,000 hrs
Maximum ambient122°F (50°C)
IP ratingIP20
Dimensions21.1 in. (535.4 mm) x 21.1 in. (535.4 mm) x 1 in. (25.4 mm)
Weight7.19 lbs (3.3 kg)
CertificationsETL, CE, UKCA, FCC
Mount / attachmentkMount
Tint controlFull plus and minus green adjustment
Request a quote Quote only — no online pricing
