LiteGear LiteMat Spectrum 8 Head
LH LM1.00122Model 256-1
LiteMat Spectrum is a rigid, ultra-thin soft source built to be rigged where a fixture has to disappear into the set. The Gen 2 light engine adds smoother low-end dimming, mappable large format pixels, precision-calibrated electronics and updateable pixel driver firmware. Heads run on 48V DC from a LiteGear dimmer over a single PDX cable.

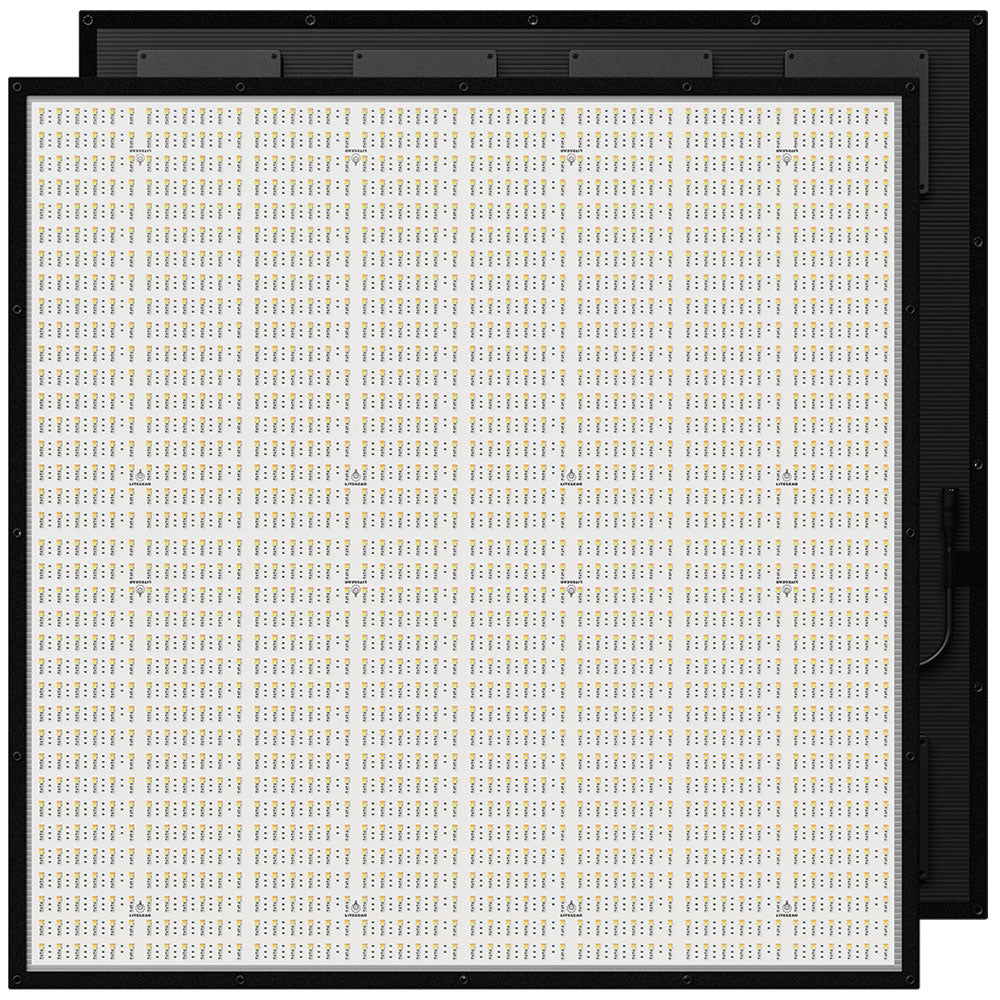

The LiteMat Spectrum 8 head. 400W nominal over 40 in. (1015.5 mm) by 40 in. (1015.5 mm), with 8 large format pixels and a 53° HPA beam. Weight 21.1 lbs (9.6 kg).
Specifications
| Lamphouse code | LM1.00122 |
|---|---|
| Manufacturer model | 256-1 |
| Wattage | 400W Nominal |
| Colour temperature | 2,000K to 11,000K |
| CRI | >= 95 |
| TLCI | >= 95 |
| Pixels | 8 large format pixels |
| Colour control | 6-color, wide gamut hue and saturation |
| Beam angle | 53° HPA |
| Dimming | 0 to 100% Continuous (When paired with a compatible LiteGear Dimmer) |
| Input voltage | 48V DC |
| Input current | 8.64A |
| Connector | PDX |
| LED lifetime | 50,000 hrs |
| Maximum ambient | 122°F (50°C) |
| IP rating | IP20 |
| Dimensions | 40 in. (1015.5 mm) x 40 in. (1015.5 mm) x 1 in. (25.4 mm) |
| Weight | 21.1 lbs (9.6 kg) |
| Certifications | ETL, CE, UKCA, FCC |
| Mount / attachment | kMount |
| Tint control | Full plus and minus green adjustment |
