Group/ LED Solutions/LiteGear LiteRibbon Cinema, Daylite, X3, 12V, 1.5 m
LiteGear / LED Ribbon
LiteGear LiteRibbon Cinema, Daylite, X3, 12V, 1.5 m
LH LR1.00133Model LR-CS-12-DAY-HD-X3

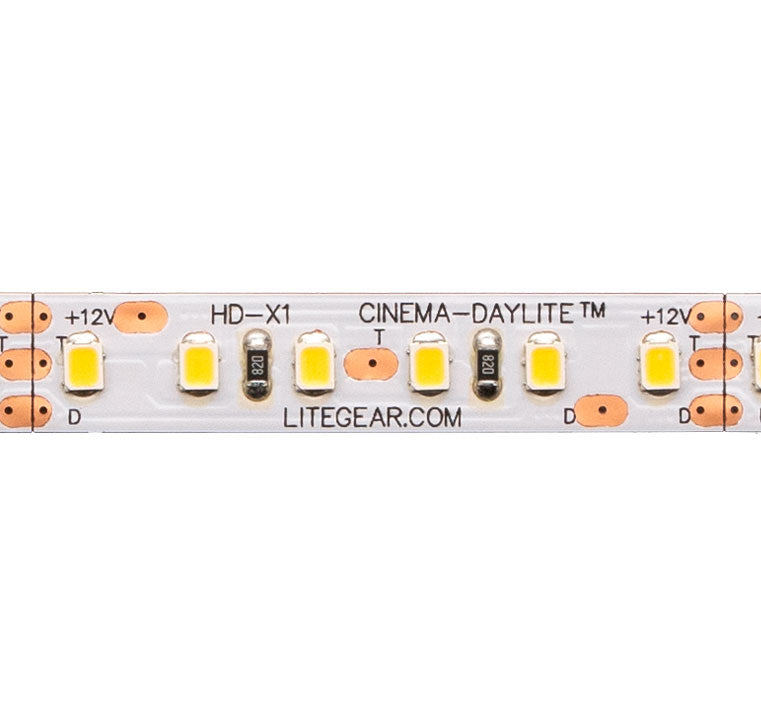

LiteRibbon is LED tape cut to length and hidden inside a practical, a cove or a set build. It runs from a LiteGear dimmer and terminates with QuickLinx solderless connectors, so a run is made up on set without a soldering iron.
Specifications
| Lamphouse code | LR1.00133 |
|---|---|
| Manufacturer model | LR-CS-12-DAY-HD-X3 |
| Wattage | 90W (total potential power per 1.5 meter roll) |
| Colour temperature | 6000K (+/-100K) |
| CRI | 95 |
| TLCI | 98 |
| LED quantity | 540 |
| Beam angle | 120° |
| Dimming | 0-100% |
| Input voltage | 12V DC nominal (8-13.5V DC constant voltage) |
| Input current | 7.5A (total potential current per 1.5 meter roll) |
| Connector | Phoenix 3-Female |
| LED lifetime | 50,000 hrs |
| Maximum ambient | -20°C to +50°C |
| IP rating | IP20 |
| Weight | 0.08 kg (2.75 oz) with input lead |
| Certifications | UL Listed (Canada/US), CE Compliant (Europe) |
| Mount / attachment | PSA backing |
