Group/ LED Solutions/LiteGear LiteRibbon Studio, Hybrid, 3000-6000K, X1, 12V, 5 m
LiteGear / LED Ribbon

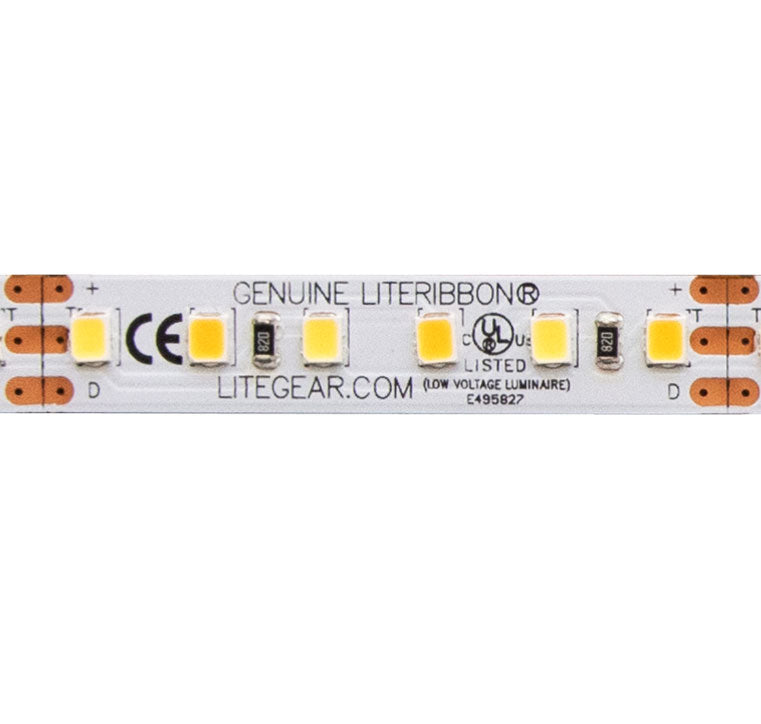

LiteGear LiteRibbon Studio, Hybrid, 3000-6000K, X1, 12V, 5 m
LH LR4.00104
This roll is the Hybrid colour, X1 density, one row of emitters. Supplied as 5 m per roll, running at 12V. LiteRibbon Studio is the long run tape in the LiteGear range, supplied on rolls for architectural and permanent studio installation where a single continuous length matters more than a short cut segment.
Specifications
| Lamphouse code | LR4.00104 |
|---|---|
| Wattage | 100W (total potential power per 5 meter roll) |
| Colour temperature | Hybrid 3000K (+/-100K), 6000K (+/-100K) |
| CRI | 95 (Tungsten), 95 (Daylite) |
| TLCI | 95 (Tungsten), 95 (Daylite) |
| LED quantity | 600 |
| Beam angle | 120° |
| Dimming | 0-100% |
| Input voltage | 12V DC nominal (8-13.5V DC constant voltage) |
| Input current | 8.33A (total potential current per 5 meter roll) |
| Connector | Phoenix 3-Female |
| LED lifetime | 50,000 Hrs |
| Maximum ambient | -20°C to +50°C (68°F to +122°F) |
| IP rating | 20 |
| Dimensions | 10 mm (0.47 in.) |
| Weight | 0.9 kg. (3.1oz.) (with input lead) |
| Certifications | UL Listed (Canada/US), CE Compliant (Europe) |
Request a quote
Quote only — no online pricing
